MODEL SPECIFICATION
| MODEL AND SPECIFICATION | THACS-NPE | ||||
|---|---|---|---|---|---|
| Max. continuous operating voltage Uc (V) | 275 | 320 | 385 | 420 | 440 |
| No of Poles | 4 Pole | ||||
| Max. Discharging Current Imax (kA) (8/20us) | 60 | ||||
| Voltage protection level Up (kV) | 1.8 | ||||
| Nominal discharge current (8/20μs) In (kA) | 30 | ||||
| Response time tA (ns) | <25 | ||||
| Protection Grade | IP20 | ||||
| Indication of invalidation | Green normal, red failure | ||||
| Application | Line-level protection | ||||
| Remote Signal Function | Can also picking | ||||
| Remarks | Other maxi continuous operating voltage can be customized | ||||
Product Tags
- High-performance surge protection device
- Industrial surge protection
- Line-level surge protector
- Surge suppression for electrical systems
- High-discharge surge protection
- Fast-response surge protector
- Remote signal surge monitoring
- Customizable voltage surge protector
- Protection against lightning and switching surges
- Surge protection for renewable energy systems

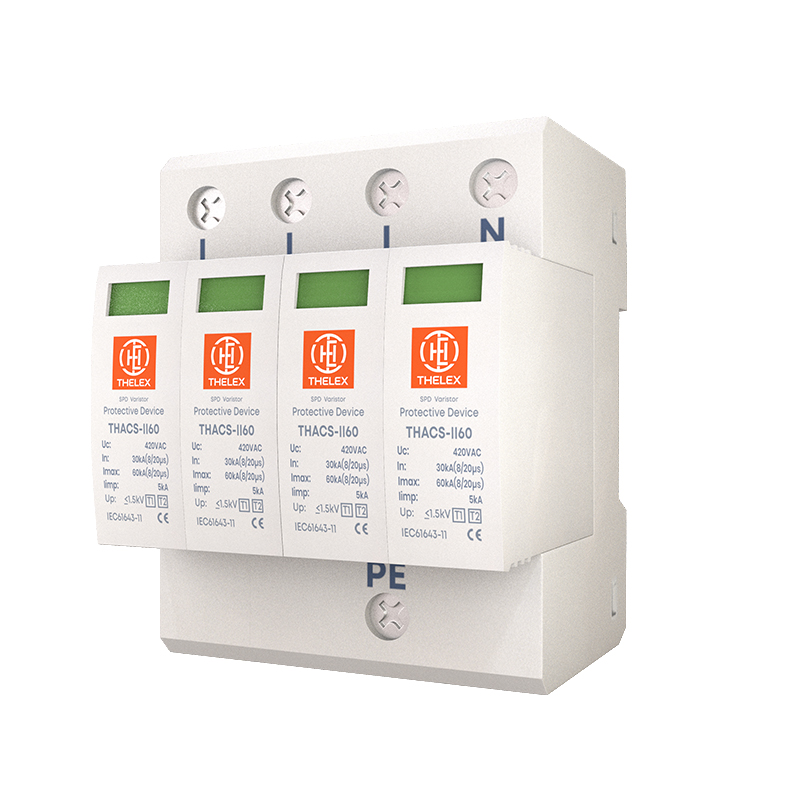

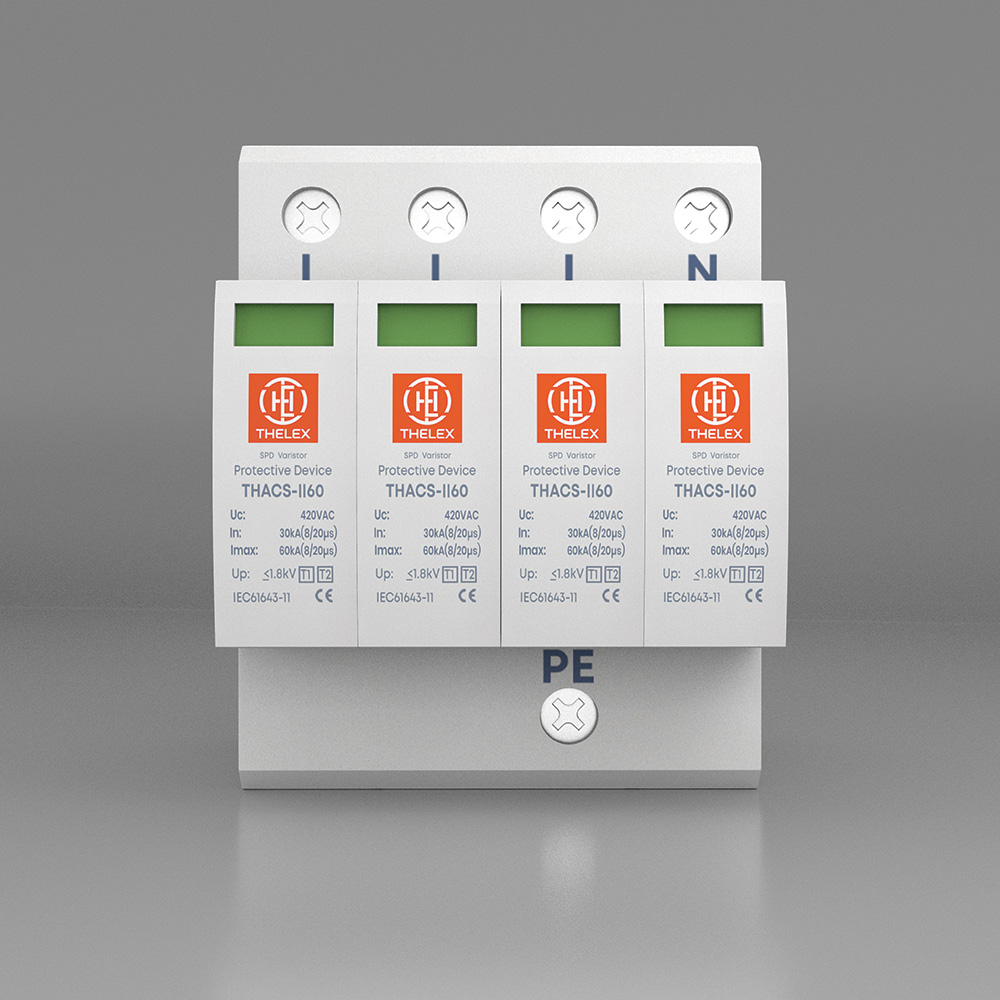

Product Description: THACS-60 Surge Protection Device (SPD) (AC SPD Type-1+2 60kA) (Integrated Shield)
The THACS-60 Surge Protection Device (SPD) is a reliable and high-performing surge protection solution designed to protect electrical systems from damaging voltage spikes and transients. Offering advanced protection for industrial, commercial, and residential applications, the THACS-60 ensures the safety and longevity of your equipment, safeguarding against power surges caused by lightning, electrical faults, and switching operations.
Key Features:
•Max. Continuous Operating Voltage (Uc):
Available in multiple voltage ratings including 275V, 320V, 385V, 420V, and 440V, with customization options for tailored solutions based on specific operational requirements.
•Voltage Protection Level (Up):
The THACS-60 provides a voltage protection level of 1.8kV, offering high-performance suppression of overvoltage events, ensuring your equipment remains safe from power surges.
•Max Discharging Current (Imax):
With a max discharging current of 60kA (8/20μs), this SPD can withstand powerful surges, ensuring that your electrical systems are shielded from extreme transient events.
•Nominal Discharge Current (In):
The THACS-60 is capable of handling a nominal discharge current of 30kA (8/20μs), offering robust protection for typical surge events.
•Fast Response Time (tA):
With a response time of less than 25 ns, the device offers instantaneous surge protection, minimizing the risk of equipment damage during high-speed transients.
•Protection Grade (IP20):
Designed with an IP20 protection grade, the THACS-60 ensures protection against solid objects greater than 12mm, while allowing for optimal heat dissipation and ensuring long-lasting performance.
•Indication of Invalidation:
The THACS-60 features a green indicator for normal operation and a red indicator for failure, providing an easy-to-read status check to ensure your system’s protection is operational.
•Remote Signal Function:
This surge protector includes a remote signal function, enabling operators to monitor the device’s status from a distance for added convenience and reliability.
•Customizable Voltage Ratings:
The THACS-60 can be customized for various maximum continuous operating voltages, providing flexibility for use in different types of electrical systems.
Additional Features of THACS-NPE:
•Customizable Voltage Options: Flexible operating voltage choices allow you to tailor protection based on the specific requirements of your electrical systems.
•Industry-Compliant: Meets IEC61643-11 standards for surge protection devices, ensuring high quality and reliability.
•Long-Term Protection: Designed to offer long-lasting protection, the THACS-NPE minimizes risks to your equipment from surges, ensuring the durability and reliability of your electrical infrastructure.
Applications:
1.Industrial Equipment Protection:
Ideal for protecting industrial machinery, electrical panels, and automation systems from power surges, the THACS-60 ensures the smooth and safe operation of critical equipment in harsh environments.
2.Commercial Infrastructure:
This SPD is perfect for safeguarding commercial equipment, including HVAC systems, IT infrastructure, and security systems, from damaging electrical spikes that could lead to costly downtime or repairs.
3.Residential Surge Protection:
The THACS-60 can be used to protect household electronics, appliances, and lighting systems from power surges, helping to prevent damage and extending the lifespan of valuable consumer electronics.
4.Renewable Energy Systems Protection:
Protect solar panels, wind turbines, and other renewable energy equipment from electrical surges, ensuring their efficiency and longevity against unpredictable power spikes.
5.Telecommunication Systems:
Ideal for telecommunication equipment, the THACS-60 helps shield critical infrastructure from voltage transients, ensuring uninterrupted communication services.
Why Choose THACS-NPE Surge Protective Device?
By opting for the THACS-NPE Surge Protective Device, you're investing in a comprehensive, high-performance solution that offers immediate surge suppression, extensive surge handling capacity, and easy monitoring. Whether you're protecting industrial systems, commercial electronics, or household appliances, the THACS-NPE SPD provides reliable, cost-effective, and customizable protection for your electrical assets. Safeguard your investments and ensure the longevity of your equipment with the THACS-NPE Surge Protective Device.
