MODEL SPECIFICATION
| MODEL AND SPECIFICATION | THACS-II60 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. continuous operating voltage Uc (V) | 275 | 320 | 385 | 420 | 1000 | |||||
| No of Poles | 4 Pole | |||||||||
| Max. Discharging Current Imax (kA) (8/20us) | 60 | |||||||||
| Voltage protection level Up (kV) | 1.6 | 1.8 | 2.0 | 2.2 | 3.5 | |||||
| Nominal discharge current (8/20μs) In (kA) | 30 | |||||||||
| Response time tA (ns) | < 25 | |||||||||
| Protection Grade | IP20 | |||||||||
| Indication of invalidation | Green normal, red failure | |||||||||
| Application | Line-level protection | |||||||||
| Remote Signal Function | Can also picking | |||||||||
| Remarks | Other maxi continuous operating voltage can be customized | |||||||||
Product Tags
- Surge protection device
- Line-level surge protection
- Industrial surge protector
- Type 2 SPD
- Surge suppressor for electrical systems
- High surge current SPD
- Surge protection for renewable energy systems
- Fast response surge protection
- IEC61643-11 compliant SPD
- Voltage surge suppressor
- Power surge protection device

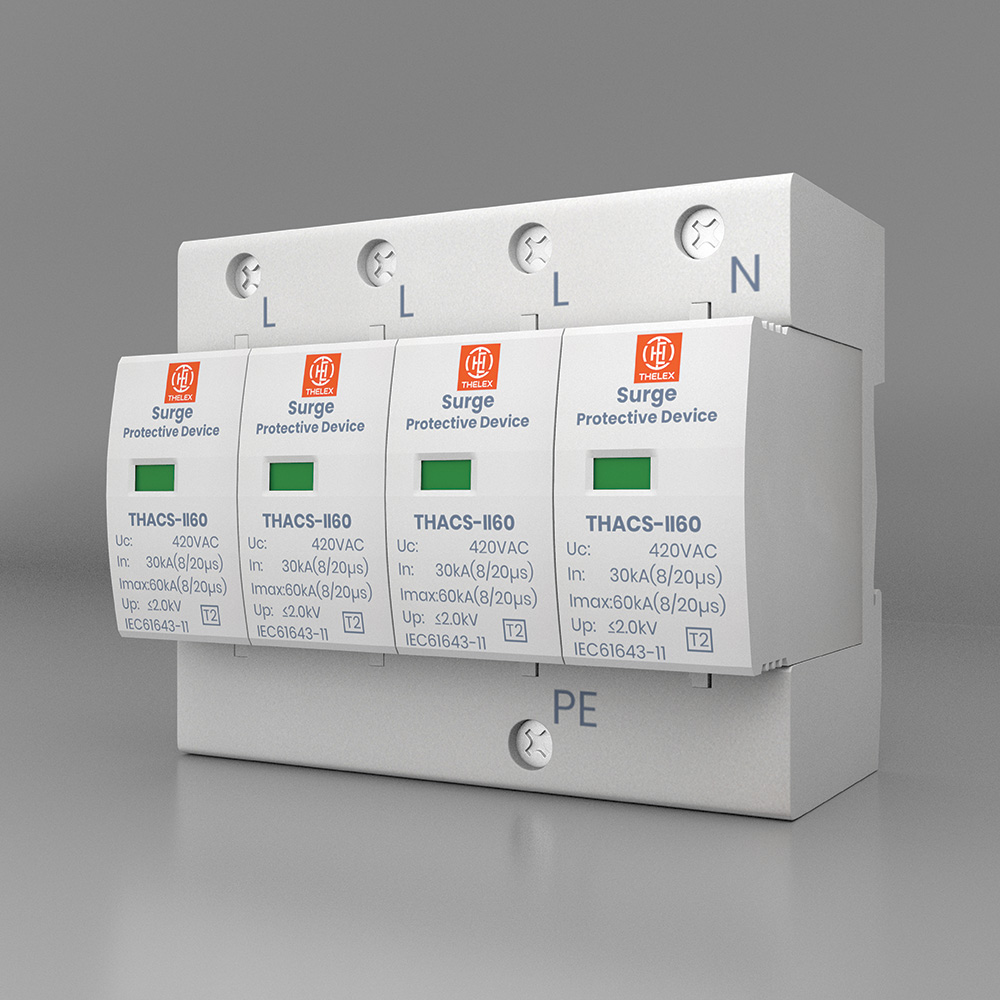

Product Description: THACS-II60 Surge Protection Device (SPD) (60kA) (27mm OB)
The THACS-II60 Surge Protection Device (SPD) is a high-performance solution designed to protect your electrical systems from transient overvoltage's caused by lightning strikes, power surges, and other electrical disturbances. Ideal for line-level protection, this device ensures that your sensitive electronic and electrical equipment remains safe, maintaining optimal performance and longevity.
With a robust design and versatile specifications, the THACS-II60 is well-suited for use in various applications, including industrial, commercial, and residential settings. It offers superior protection by absorbing surges, thus preventing damage to critical equipment.
Key Features:
•Max. Continuous Operating Voltage (Uc):
Available in 275V, 320V, 385V, 420V, and 1000V options, ensuring compatibility with a wide range of electrical systems.
•Voltage Protection Level (Up):
•1.6kV (275V), 1.8kV (320V), 2.0kV (385V), 2.2kV (420V), and 3.5kV (1000V) protection for effective suppression of surge voltages.
•Surge Current Handling (Imax):
With a maximum discharging current of 60kA (8/20μs), the THACS-II60 can handle significant surge events, ensuring long-term protection for your systems.
•Nominal Discharge Current (In):
Rated at 30kA, it provides excellent protection against moderate surge currents, keeping equipment safe from potential damage.
•Fast Response Time:
Reacts in less than 25 nanoseconds to overvoltage events, limiting the duration of the surge and protecting sensitive equipment.
•Protection Grade:
IP20 rated for solid particle protection, making it ideal for environments where dust or debris may pose a risk to sensitive components.
•Indication of Invalidation:
Easily visible status indicators (Green for Normal, Red for Failure) to help monitor device performance.
•Remote Signal Function:
Capable of providing a remote indication of status, allowing for real-time monitoring and alerting.
•Customizable Voltage Ratings:
Other maximum continuous operating voltage ratings can be customized to meet specific application requirements.
Additional Features:
•Thermal Disconnect Mechanism: Isolates the device in case of prolonged surges or overheating for added safety.
•Compact Design: Easily integrates into existing systems with DIN rail compatibility.
•Durable Enclosure: IP20-rated fire-resistant construction ensures long-lasting reliability.
•Wide Operating Range: Performs efficiently in temperatures ranging from -40°C to +80°C.
•Self-Diagnosis Capability: Monitors its own status and alerts users to potential issues.
•Eco-Friendly Materials: Built with recyclable and RoHS-compliant materials for sustainable usage.
Applications of the THACS-II60 Surge Protection Device:
1.Industrial Electrical Systems:
Protect industrial machinery, control systems, and power distribution systems from transient surges and overvoltage conditions that can cause expensive damage.
2.Telecommunications Equipment:
Ensure that telecom systems, servers, and data centers are protected from power spikes, keeping critical communication services uninterrupted.
3.Renewable Energy Systems (Solar/Wind):
Protect solar power systems, wind turbines, and other renewable energy technologies from overvoltage events, which can disrupt the generation process and damage electrical components.
4.Residential Power Systems:
Safeguard household appliances and home electrical systems from power surges caused by lightning or grid issues, providing long-term protection.
5.Commercial and Office Buildings:
Shield office equipment, including computers, servers, and other electronics, from damage due to power surges, ensuring reliable and continuous operation.
Why Choose THACS-II60?
1.High Surge Capacity: Withstands high-energy surges with a 60 kA discharge capacity, providing superior protection.
2.Rapid Activation: Lightning-fast response time of < 25 nanoseconds, minimizing damage to sensitive devices.
3.Customizable Options: Voltage configurations from 275V to 1000V make it adaptable to various systems.
4.User-Friendly Indicators: Intuitive green and red indicators simplify diagnostics and maintenance.
5.Remote Monitoring Ready: Built-in remote signal functionality enhances monitoring efficiency.
6.Standards-Compliant: Designed to meet IEC61643-11, ensuring reliable and safe operation.
