MODEL SPECIFICATION
| MODEL AND SPECIFICATION | THACS-II10 | THACS-II20 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. continuous operating voltage Uc (V) | 275 | 320 | 385 | 420 | 750 | 275 | 320 | 385 | 420 | 750 |
| No of Poles | 4 Pole | |||||||||
| Max. Discharging Current Imax (kA) (8/20us) | 10 | 20 | ||||||||
| Voltage protection level Up (kV) | 1.2 | 1.4 | 1.5 | 1.8 | 2.5 | 1.0 | 1.2 | 1.3 | 1.6 | 2.0 |
| Nominal discharge current (8/20μs) In (kA) | 5 | 10 | ||||||||
| Response time tA (ns) | < 25 | |||||||||
| Protection Grade | IP20 | |||||||||
| Standard | IEC61643-11 | |||||||||
| Indication of invalidation | Green normal, red failure | |||||||||
| Application | Several protection for in line | |||||||||
| Remote Signal Function | Can also picking | |||||||||
| Remarks | Other maxi continuous operating voltage can be customized | |||||||||
Product Tags
- THACS-II10 and THACS-II20 Surge Protection Devices
- IEC61643-11 Compliant Surge Protectors
- 10kA and 20kA Discharge Current Surge Protectors
- In-Line Surge Protection for Electrical
- Systems
- High-Performance Power Surge Protection Devices
- Industrial and Residential Surge Protection Solutions
- Reliable Surge Protection for Telecom Equipment
- Residential and Commercial Voltage Surge Protection
- Customizable Surge Protection for Electrical Lines
- Fast-Response Overvoltage Protection Device
- Advanced Surge Protection for Renewable Energy Systems
- IEC Standard Surge Protection for Equipment
- Surge Protection Devices with Remote Signal Function
- Quick Detection Surge Protectors for Equipment

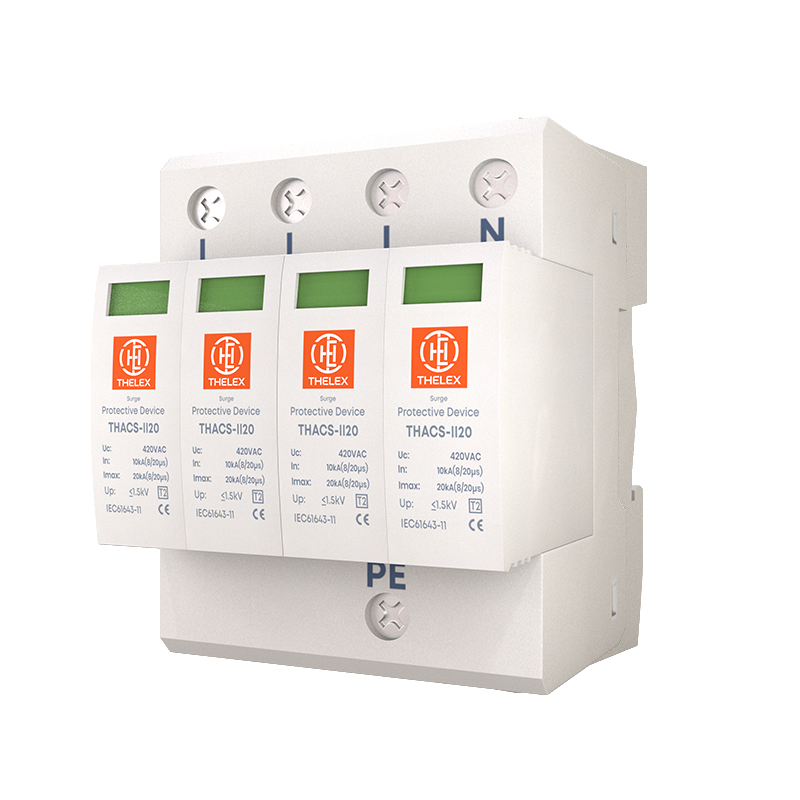

Product Description (20kA) (Integrated Shield)
The THACS-II10 and THACS-II20 surge protection devices (SPDs) offer highly reliable and efficient protection against transient overvoltage for a wide range of electrical systems. These devices are engineered for in-line protection, ensuring that your equipment is shielded from surges caused by lightning, switching events, or other power anomalies. With IEC61643-11 compliance, they meet international standards for surge protection and deliver reliable performance in both industrial and residential applications.
Key Specifications:
•Max. Continuous Operating Voltage (Uc):
•THACS-II10: 275V, 320V, 385V, 420V, 750V
•THACS-II20: 275V, 320V, 385V, 420V, 750V
•Voltage Protection Level (Up):
•THACS-II10: 1.2kV, 1.4kV, 1.5kV, 1.8kV, 2.5kV
•THACS-II20: 1.0kV, 1.2kV, 1.3kV, 1.6kV, 2.0kV
•Maximum Discharge Current (Imax):
•THACS-II10: 10kA
•THACS-II20: 20kA
•Nominal Discharge Current (In):
•THACS-II10: 5kA
•THACS-II20: 10kA
•Response Time (tA): <25 nanoseconds
•Protection Grade: IP20
•Standard Compliance: IEC61643-11
•Indication of Invalidation:
•Green: Normal operation
•Red: Device failure
Additional Features:
•Customizable Voltage Configurations:
Tailored solutions to meet your specific voltage protection requirements.
•Remote Signal Function:
Enables integration with remote monitoring and alert systems for enhanced management.
•Visual Status Indicators:
Green LED indicates normal operation, while red signals device failure for quick detection of issues.
•Compact and Durable Design:
Designed for ease of installation and long-lasting performance in diverse environments.
Applications:
1.In-Line Surge Protection:
Protects electrical systems from transient overvoltage by diverting surges to the ground, ensuring the safety of your equipment.
2.Industrial Equipment:
Safeguards critical machinery, automation systems, and control panels from power surges.
3.Telecommunication Equipment:
Protects telecom systems and network devices from lightning and power spikes.
4.Residential Systems:
Ensures the protection of household appliances and electrical systems from transient voltage surges.
5.Renewable Energy Systems:
Secures solar inverters, wind turbines, and energy storage systems from electrical spikes.
6.Power Distribution Networks:
Provides overvoltage protection for power distribution panels and systems.
Benefits of Choosing THACS-II Series:
•High Surge Capacity:
Designed to handle extreme surge events efficiently.
•Fast Response Time:
Immediate action minimizes damage to connected devices.
•User-Friendly Indicators:
Clear status indication for easy maintenance and monitoring.
•Durable Construction:
Built to withstand challenging environmental conditions.
•Customizable Options:
Tailored solutions to meet specific requirements for various applications.
