MODEL SPECIFICATION
MODEL AND SPECIFICATION | THACS-II60 | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Max. continuous operating voltage Uc (V) | 275 | 320 | 385 | 420 | 1000 | |||||
No of Poles | 4 Pole | |||||||||
Max. Discharging Current Imax (kA) (8/20us) | 60 | |||||||||
Voltage protection level Up (kV) | 1.6 | 1.8 | 2.0 | 2.2 | 3.5 | |||||
Nominal discharge current (8/20μs) In (kA) | 30 | |||||||||
Response time tA (ns) | < 25 | |||||||||
Protection Grade | IP20 | |||||||||
Indication of invalidation | Green normal, red failure | |||||||||
Application | Line-level protection | |||||||||
Remote Signal Function | Can also picking | |||||||||
Remarks | Other maxi continuous operating voltage can be customized |
Product Tags
- Surge protection device
- Line-level surge protector
- Type 2 surge protection
- High discharge current SPD
- Surge suppressor for electrical systems
- Industrial surge protection device Power surge protection
- Fast response SPD
- IP20 surge protector
- Voltage surge suppressor
- IEC61643-11 surge protection

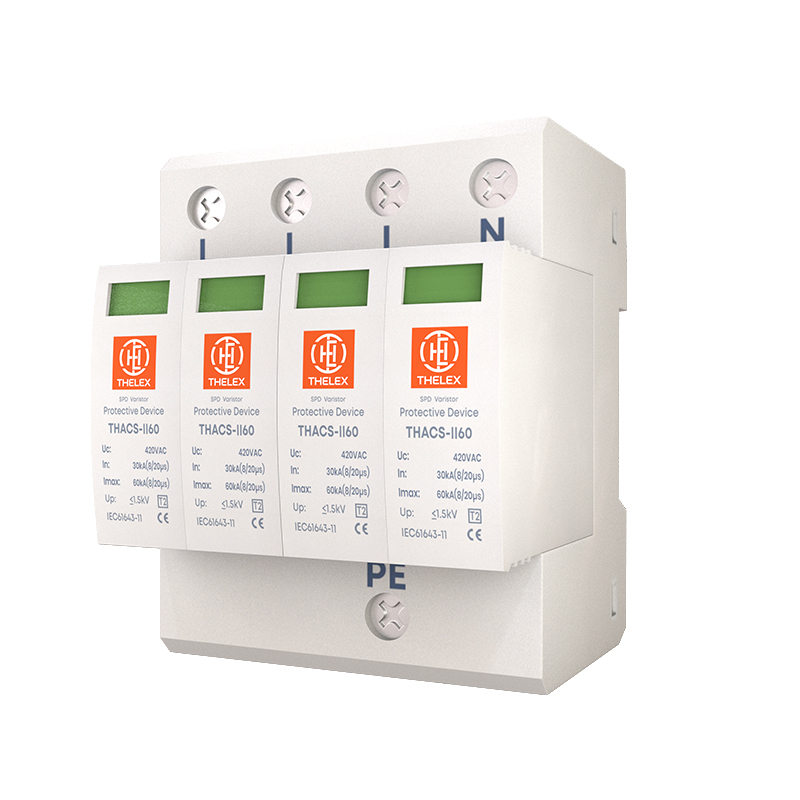

Product Description: THACS-II60 Surge Protection Device (SPD) (60kA) (Integrated Shield)
The THACS-II60 Surge Protection Device (SPD) is a top-of-the-line solution for safeguarding your electrical systems from surges and transient overvoltage's. Whether for industrial, commercial, or residential use, this SPD offers reliable protection against the damaging effects of electrical surges caused by lightning, power grid fluctuations, or other disturbances.
With advanced features and customizable voltage options, the THACS-II60 ensures that sensitive equipment and electrical installations remain safe from unexpected surges, extending their operational life and reducing downtime.
Key Features:
•Max. Continuous Operating Voltage (Uc):
Available in multiple voltage options: 275V, 320V, 385V, 420V, and 1000V, making it versatile for various system configurations.
•Voltage Protection Level (Up):
Protects against surge voltages with varying protection levels for each voltage rating:
•1.6kV (275V), 1.8kV (320V), 2.0kV (385V), 2.2kV (420V), and 3.5kV (1000V).
•Max Discharging Current (Imax):
With a peak discharging current of 60kA (8/20μs), this device can handle large surge events, ensuring the safety of your equipment.
•Nominal Discharge Current (In):
Rated at 30kA, it provides robust protection against high-intensity surges.
•Fast Response Time (tA):
With a response time of <25 ns, it reacts quickly to limit surge durations and prevent damage to sensitive equipment.
•Protection Grade (IP20):
Features an IP20 rating, providing protection from solid objects larger than 12mm, making it suitable for most environments.
•Indication of Invalidation:
Clear status indicators to monitor the health of the device:
•Green for normal operation
•Red for failure or invalidation.
•Remote Signal Function:
Includes the option for remote signal monitoring, alerting you to device status in real time.
•Customizable Voltage Options:
Custom maximum continuous operating voltage ratings available to suit specific application needs.
Additional Features:
•Thermal Protection Mechanism: Automatically isolates the SPD in the event of overheating or prolonged surge activity.
•Compact and Modular Design: Fits easily into standard electrical panels and supports DIN rail mounting for convenient installation.
•Fire-Resistant Enclosure: Enhances safety by reducing fire risks during electrical faults.
•Eco-Friendly Construction: Built with RoHS-compliant materials for environmentally sustainable use.
•Wide Operating Temperature Range: Performs efficiently in extreme conditions, from -40°C to +80°C.
•Self-Monitoring Capability: Provides real-time diagnostics and alerts for efficient maintenance.
•High Energy Absorption: Handles repeated surges without compromising protection levels.
Applications:
1.Industrial Electrical Systems:
The THACS-II60 SPD is ideal for protecting industrial machinery, control systems, and power distribution from harmful power surges and lightning strikes.
2.Commercial Infrastructure:
Essential for protecting office equipment, servers, and commercial electrical systems, ensuring that operations are uninterrupted by electrical surges.
3.Telecommunications Networks:
Protect telecommunication infrastructure from voltage spikes, maintaining uptime and preventing potential damage to sensitive electronic equipment.
4.Renewable Energy Systems:
Perfect for safeguarding solar, wind, and other renewable energy systems against lightning strikes and electrical grid fluctuations.
5.Residential Power Systems:
Keep household electronics, home appliances, and smart systems safe from power surges caused by storms or grid instability.
Why Choose THACS-II60?
1.Unmatched Surge Capacity: Handles severe power surges with a maximum discharge capacity of 60 kA, offering exceptional protection.
2.Customizable Voltage Options: Configurable Uc values from 275V to 1000V ensure compatibility with a variety of applications.
3.Rapid Protection: Lightning-fast response time (< 25 nanoseconds) prevents damage to sensitive devices.
4.User-Friendly Indicators: Clear green and red status lights simplify monitoring and maintenance.
5.Remote Signal Capability: Allows seamless integration with remote monitoring and control systems.
6.Compliant Design: Meets international safety standards (IEC61643-11) for reliable and long-lasting performance.
