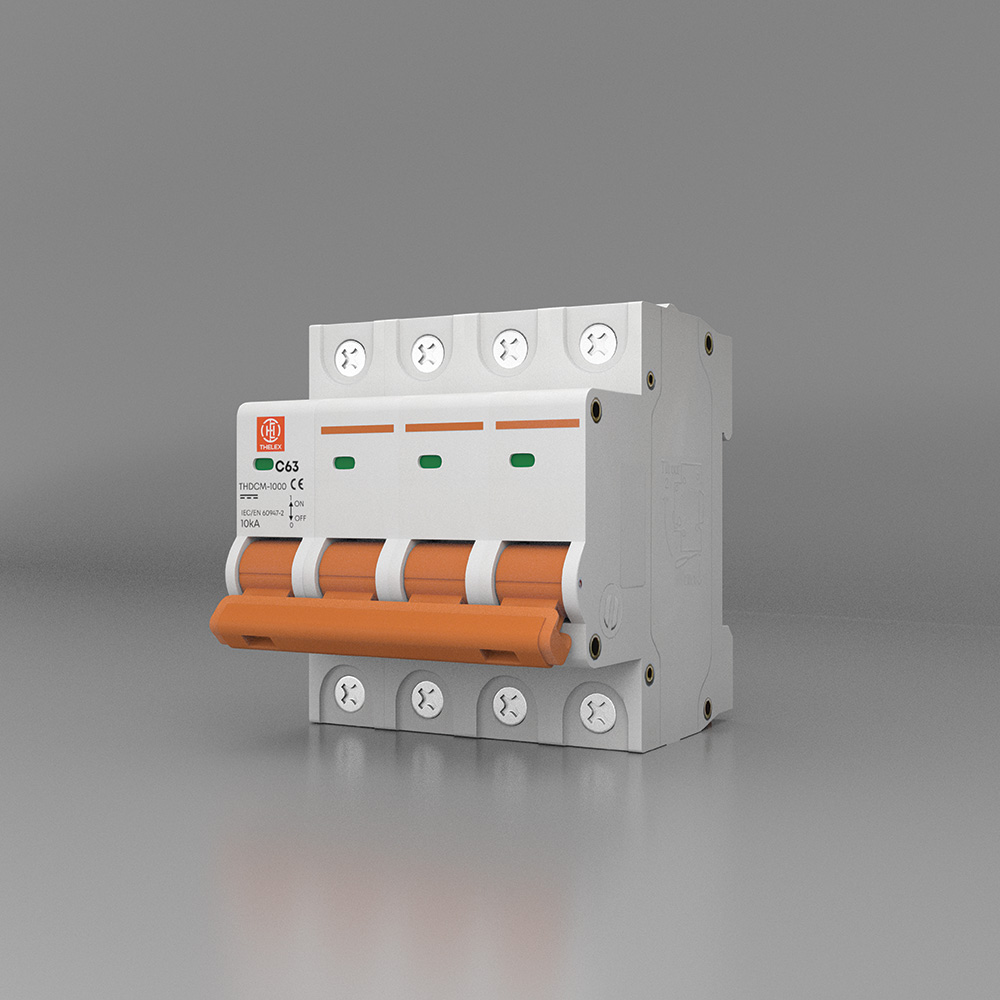

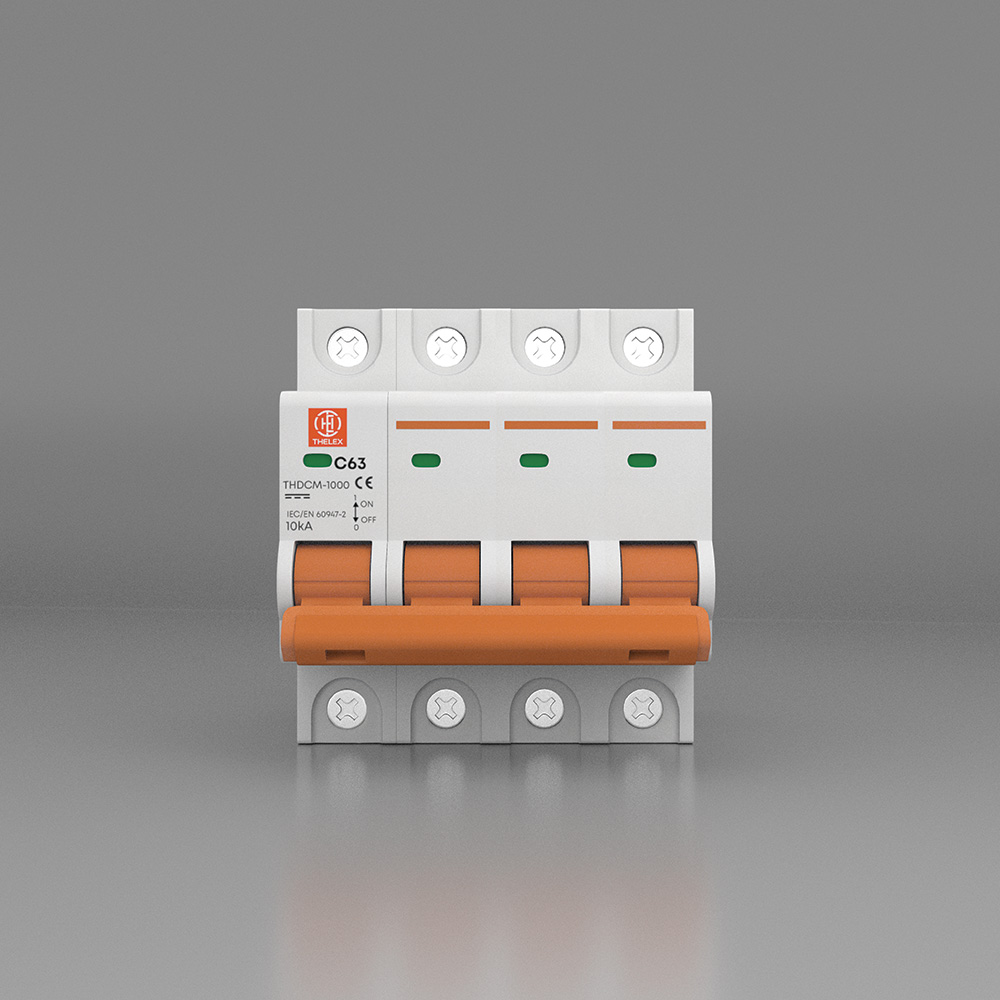

Miniature Circuit Breaker (MCB)

Key Features:

•Max. Continuous Operating Voltage (Uc):
The breaker supports a maximum continuous operating voltage of 1000V, making it suitable for use in both standard and high-voltage environments.

•Current Rating Options:
Available in current ratings ranging from 16A to 125A, offering versatility for various system protection needs:
16A, 32A, 50A, 63A, 80A, 100A, 125A.

•Frame Options:

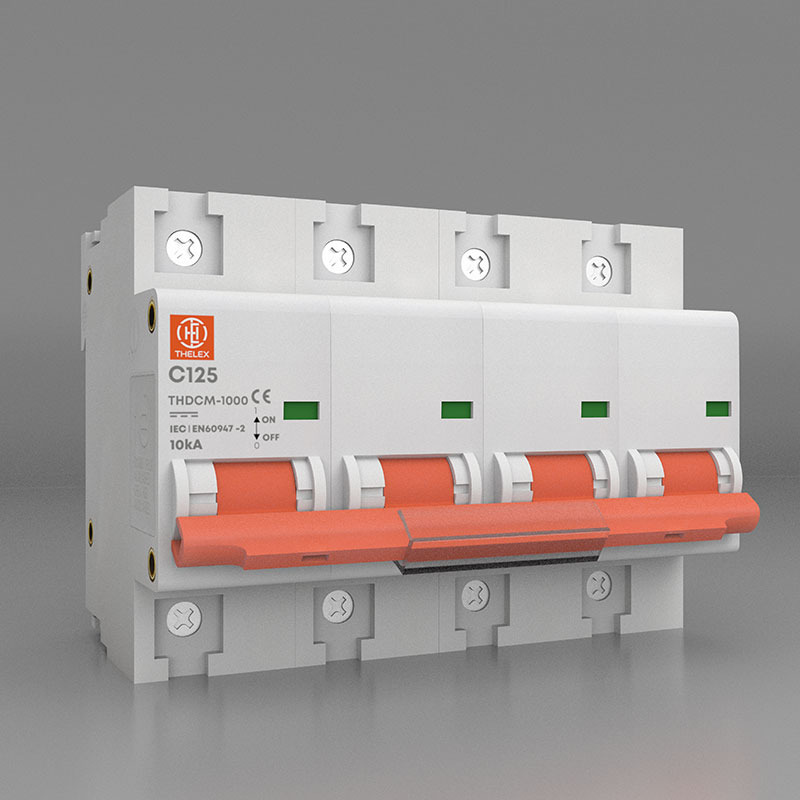

Choose between 63A and 125A frame sizes to meet the protection requirements of your specific installation.

•Breaking Capacity (Icu=75%):
With a breaking capacity of 10kA, the breaker can interrupt fault currents safely and effectively, preventing damage to circuits and connected equipment.

•Trip Curve:
Equipped with a C trip curve, the breaker provides medium sensitivity for protecting a wide range of electrical circuits, including motor circuits and general-purpose applications.

•Standard Compliance:
Manufactured in compliance with the IEC60947-2 standard, this breaker meets international safety regulations and ensures high-quality protection for electrical systems.

•Mounting:
Designed for easy installation, the breaker can be mounted on a 35mm Din rail, providing a convenient and secure method for integrating it into electrical panels and distribution boards.

•Indication of Invalidation:
Features a tripping indication, signaling when the breaker has interrupted a fault or overload condition, helping with quick identification and resolution of issues.

Additional Features:

•Compact Design: The Four Pole Circuit Breaker is designed to be compact, making it suitable for installation in tight spaces like control panels and electrical cabinets.

•Long Service Life: Built with durable materials, the breaker is designed for extended use and high reliability, providing long-term protection with minimal maintenance.

•Durable Construction: The robust construction ensures that the Four Pole Circuit Breaker withstands the rigors of daily use, even in harsh environments or demanding conditions.

•Cost-Effective Protection: This circuit breaker offers an affordable way to protect your electrical circuits without sacrificing safety or performance.

Applications:

1.Industrial Electrical Systems:
Ideal for multi-phase industrial circuits, ensuring protection for motors, machines, and heavy-duty equipment from overloads and short circuits.

2.Commercial Installations:
Used to protect circuits in commercial buildings, including lighting, HVAC systems, and power distribution panels, from potential electrical hazards.

3.Residential Systems (High Voltage):
Suitable for high-voltage systems in larger residential installations, such as those with multiple phases or heavy electrical demand.

4.Power Distribution Panels:
Protects the power distribution systems from faults, ensuring a safe and continuous power supply across multiple electrical circuits.

5.Motors and Equipment Protection:
Ideal for protecting motors and devices that require four-pole protection due to high inrush currents and complex electrical circuits.

Why Choose This Four Pole Circuit Breaker?

Choose the Four Pole Circuit Breaker for its exceptional protection capabilities and versatility across various applications. With high voltage protection, a 10kA breaking capacity, and compliance with IEC 60947-2 standards, it ensures the highest level of safety and reliability for your electrical systems. Whether you're protecting industrial machinery, power distribution networks, or residential circuits, this breaker is the ideal choice for reliable and efficient circuit protection.
