MODEL SPECIFICATION
| MODEL AND SPECIFICATION | THACS-NPE | ||||
|---|---|---|---|---|---|
| Max. continuous operating voltage Uc (V) | 275 V | 320 V | 385 V | 420 V | 440 V |
| No of Poles | 4 Pole | ||||
| Max. Discharging Current Imax (kA) (8/20us) | 40 | ||||
| Voltage protection level Up (kV) | 2 | ||||
| Nominal discharge current (8/20μs) In (kA) | 20 | ||||
| Response time tA (ns) | <25 | ||||
| Protection Grade | IP20 | ||||
| Indication of invalidation | Green normal, red failure | ||||
| Application | Incoming line secondary protection | ||||
| Remote Signal Function | Can also picking | ||||
| Remarks | Other maxi continuous operating voltage can be customized | ||||
Product Tags
- Surge protection device for incoming lines
- High-voltage surge protector
- Electrical system surge suppressor
- Industrial SPD for equipment protection
- Nominal discharge current surge protection
- Fast response surge protector
- Surge protection with remote monitoring
- Residential power surge protection
- Secondary line surge protection
- Renewable energy surge protection

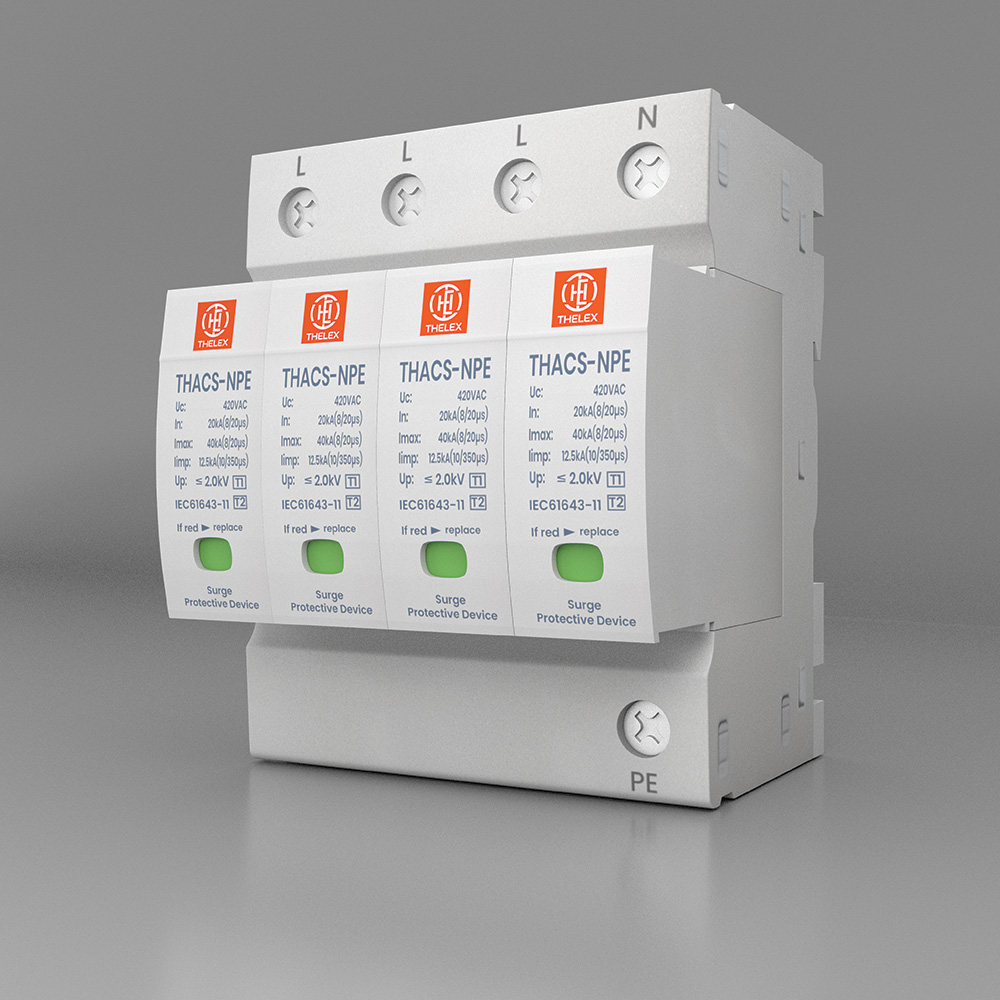

Product Description: THACS-NPE Surge Protection Device (SPD) (AC SPD Type 1+2 40kA) (NPE)
The THACS-NPE Surge Protection Device (SPD) is a top-tier solution for safeguarding electrical systems against transient overvoltage and power surges. Designed specifically for incoming line secondary protection, it provides reliable defense against harmful electrical disturbances such as lightning strikes, switching surges, and other voltage spikes. This device offers outstanding protection for various industrial, commercial, and residential applications.
Key Features:
•Max. Continuous Operating Voltage (Uc):
Available in multiple voltage ratings of 275V, 320V, 385V, 420V, and 440V, the THACS-NPE is versatile and customizable to meet the requirements of different electrical systems.
•Voltage Protection Level (Up):
With a voltage protection level of 2kV, the THACS-NPE ensures excellent suppression of transient overvoltage, protecting sensitive equipment from dangerous electrical surges.
•Max Discharging Current (Imax):
Designed to handle a maximum discharging current of 40kA (8/20μs), the THACS-NPE offers exceptional protection even during high-intensity surge events.
•Nominal Discharge Current (In):
Capable of handling a nominal discharge current of 20kA (8/20μs), the device effectively absorbs typical surge currents, reducing the risk of equipment damage.
•Fast Response Time (tA):
The THACS-NPE features an ultra-fast response time of less than 25 ns, ensuring instantaneous protection against power surges and preventing damage to sensitive electrical systems.
•Protection Grade (IP20):
With an IP20 protection grade, the device is durable and well-suited for use in environments where dust or solid objects larger than 12mm may be present.
•Indication of Invalidation:
The THACS-NPE includes a green indicator for normal operation and a red indicator for failure, making it easy to monitor the status of the device at a glance.
•Remote Signal Function:
This SPD is equipped with a remote signal function, allowing users to remotely monitor and receive notifications about the device's status, ensuring continuous protection.
•Customizable Voltage Rating:
The THACS-NPE is available with customizable maximum continuous operating voltages, allowing for flexibility in various electrical system configurations.
Additional Features:
•Robust Protection Against High-Energy Surges: The THACS-NPE offers up to 40 kA Imax, protecting your systems from the most severe surges.
•Ultra-Fast Surge Suppression: The <25 ns response time ensures immediate suppression of surges, minimizing potential damage to sensitive equipment.
•Comprehensive Monitoring: Green/red indicators and remote signal function make it easy to monitor and maintain the device, ensuring its continued performance.
•Long-Term Reliability: The IP20-rated design ensures safe and reliable operation in typical conditions, making it a durable solution for your surge protection needs.
Applications:
1.Incoming Line Secondary Protection:
The THACS-NPE provides essential surge protection for secondary lines, shielding electrical equipment from transient voltage spikes and ensuring uninterrupted power supply.
2.Industrial Equipment Protection:
Safeguard industrial machinery, control panels, and electrical devices from damaging surges, enhancing the longevity and reliability of your equipment.
3.Residential Surge Protection:
Protect household appliances, home electronics, and HVAC systems from power surges caused by lightning or power fluctuations, preventing costly damage and downtime.
4.Telecommunications Infrastructure:
Essential for protecting telecom equipment, the THACS-NPE ensures that your communication systems remain operational by safeguarding them from electrical disturbances.
5.Renewable Energy Systems:
Protect solar panels, wind turbines, and other renewable energy components from power surges, ensuring the durability and efficiency of your green energy systems.
Why Choose the THACS-NPE Surge Protective Device?
1.High Surge Capacity: With 40 kA Imax and 20 kA In, the THACS-NPE is capable of handling large surge events, providing exceptional protection for sensitive electrical equipment.
2.Fast Surge Response: The <25 ns response time ensures that surges are suppressed almost instantly, preventing damage to electrical devices.
3.Clear Status Indicators: The green and red status lights allow for easy, real-time monitoring of the device's condition, making it simple to assess if the surge protector is working properly.
4.Customizable Voltage Levels: The ability to choose from a range of operating voltages (275V to 440V) ensures that the THACS-NPE can be tailored to meet the specific needs of your electrical system.
5.Remote Monitoring: The remote signal function allows for efficient management and troubleshooting, especially in remote or hard-to-reach installations.
6.Durable Protection: The IP20 protection grade guarantees durability and reliable operation in typical environments, providing long-term protection for your systems.
7.IEC61643-11 Standard Compliance: Fully compliant with IEC61643-11, ensuring that the THACS-NPE meets international safety and performance standards for surge protection.
