MODEL SPECIFICATION
| MODEL AND SPECIFICATION | THACS-II80 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. continuous operating voltage Uc (V) | 275 | 320 | 385 | 420 | ||||||
| No of Poles | 4 Pole | |||||||||
| Max. Discharging Current Imax (kA) (8/20us) | 80 | |||||||||
| Voltage protection level Up (kV) | 1.8 | 2.0 | 2.3 | 2.5 | ||||||
| Nominal discharge current (8/20μs) In (kA) | 40 | |||||||||
| Response time tA (ns) | < 25 | |||||||||
| Protection Grade | IP20 | |||||||||
| Standard | IEC61643-11 | |||||||||
| Indication of invalidation | Aging Invalidation: Green: Normal, red: Invalidation | |||||||||
| Application | Line-level protection | |||||||||
| Remote Signal Function | Can also picking | |||||||||
| Remarks | Other maxi continuous operating voltage can be customized | |||||||||
Product Tags
- High-performance surge protection
- Line-level surge protector
- Surge protection for high-voltage systems
- Type 2 surge suppressor
- High discharge current SPD Industrial surge protection device
- Power surge suppressor
- Fast-response surge protector
- IEC61643-11 SPD
- Surge protection for telecom networks
- Voltage surge protection system

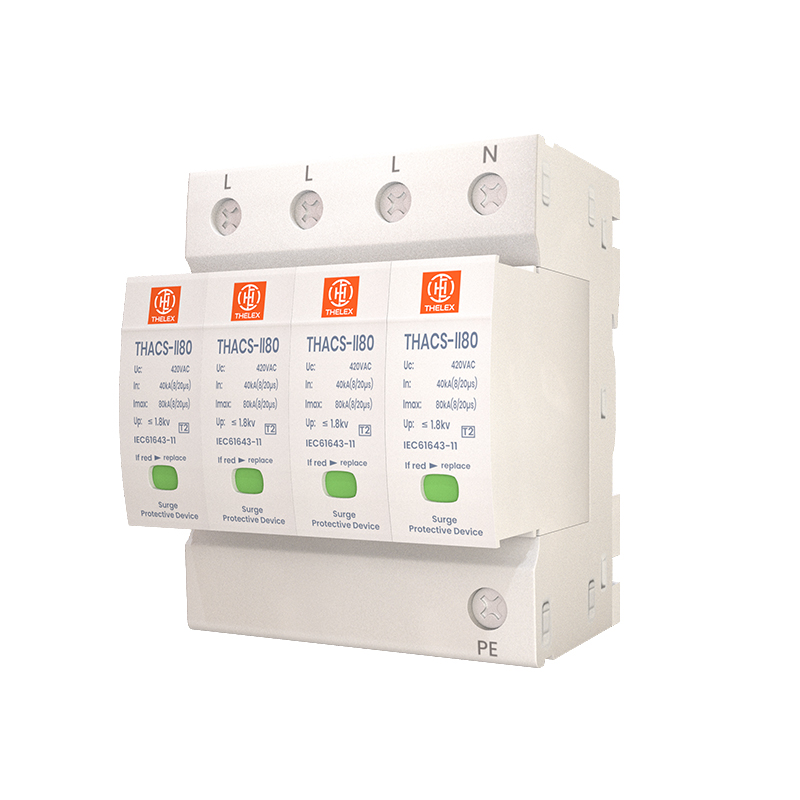

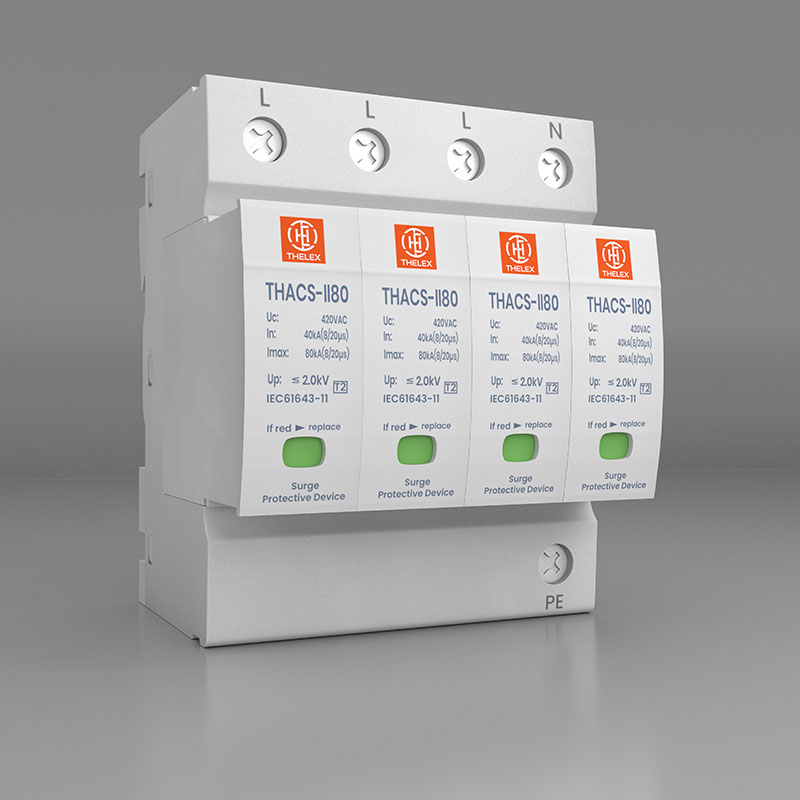

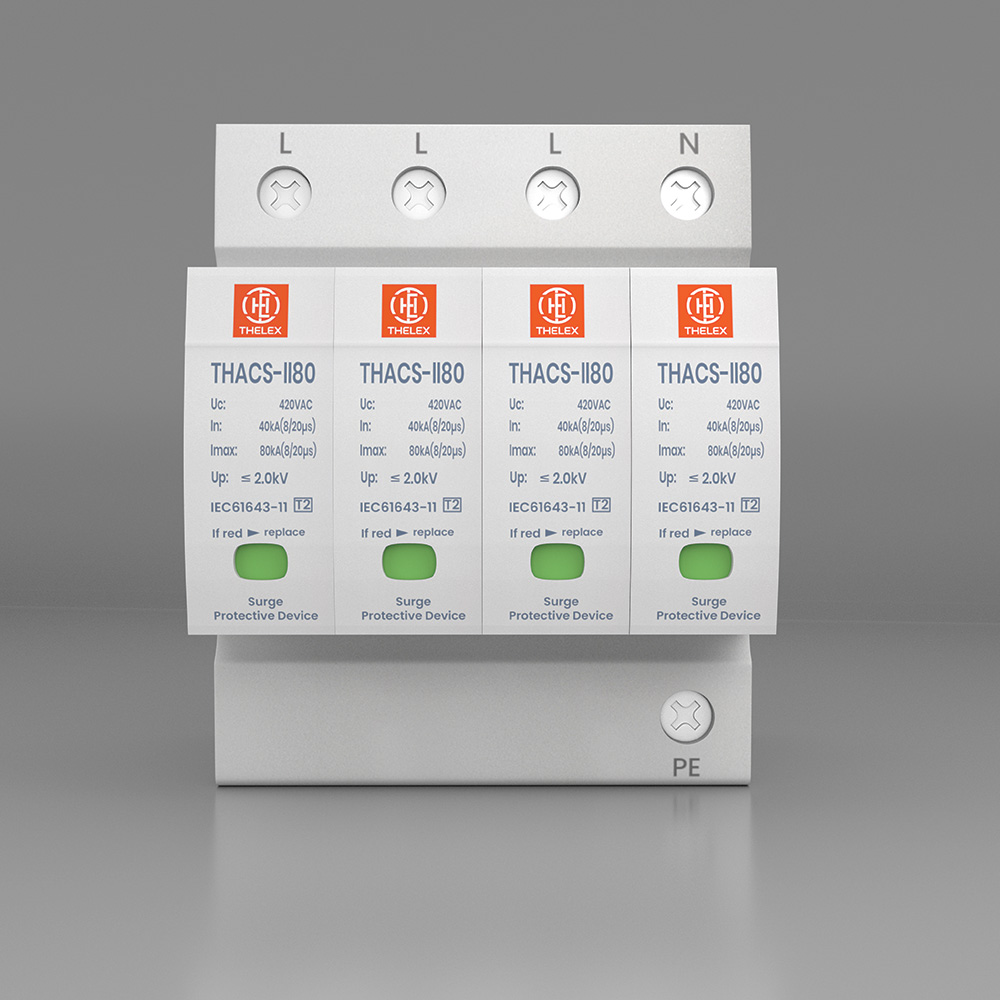

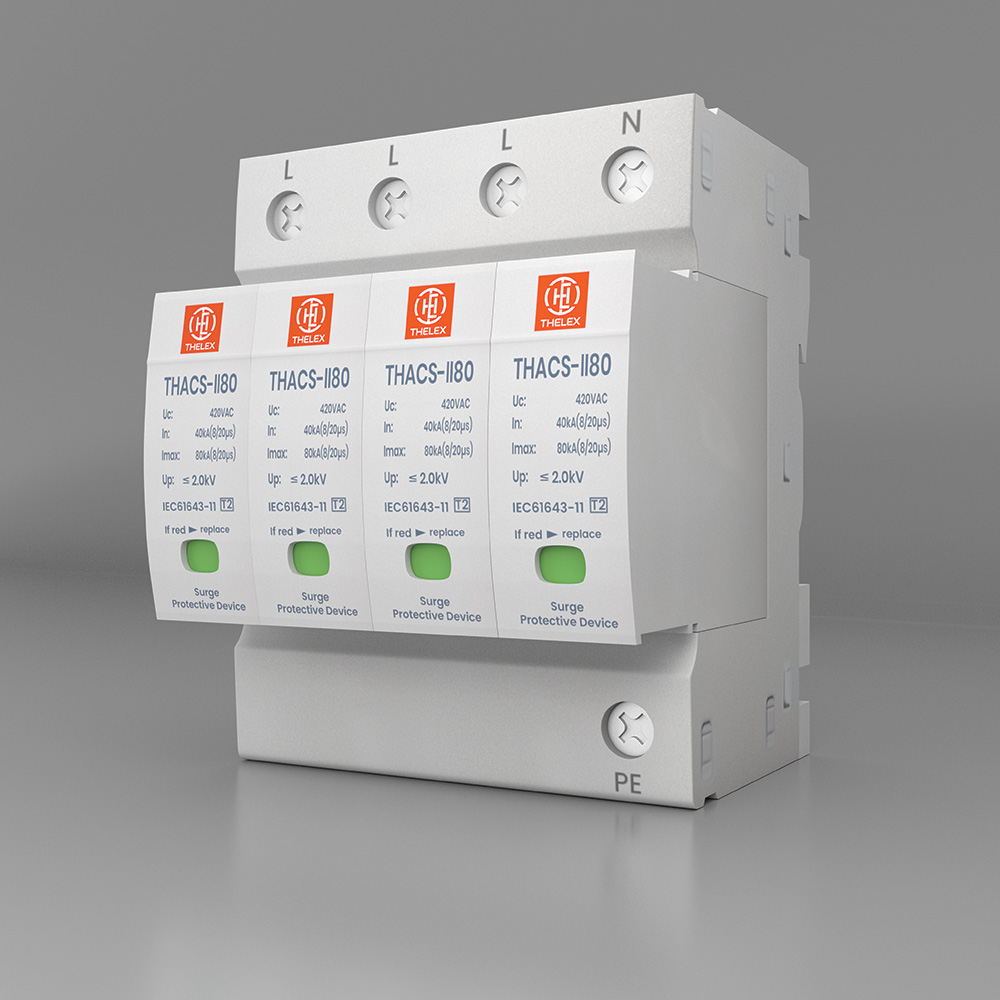

Product Description: THACS-II80 Surge Protection Device (SPD) (80kA) (New Surge)
The THACS-II80 Surge Protection Device (SPD) is a high-performance surge protector designed to shield your electrical systems from severe voltage surges and transients. Whether it's for industrial, commercial, or residential use, the THACS-II80 offers exceptional protection against electrical spikes caused by lightning strikes, power grid fluctuations, or other unexpected electrical disturbances.
With a high discharge capacity and customizable voltage options, the THACS-II80 ensures that your sensitive equipment is protected, minimizing the risk of damage, downtime, and expensive repairs.
Key Features:
•Max. Continuous Operating Voltage (Uc):
Available in multiple voltage configurations: 275V, 320V, 385V, and 420V, catering to different system requirements.
•Voltage Protection Level (Up):
Provides effective surge protection with voltage protection levels:
•1.8kV (275V), 2.0kV (320V), 2.3kV (385V), and 2.5kV (420V).
•Max Discharging Current (Imax):
Capable of handling surge currents of up to 80kA (8/20μs), providing robust protection during high-intensity surges.
•Nominal Discharge Current (In):
With a nominal discharge current of 40kA, it effectively suppresses medium to high surge events.
•Fast Response Time (tA):
Featuring a fast response time of <25 ns, it quickly suppresses electrical surges before they can cause damage.
•Protection Grade (IP20):
With an IP20 rating, it offers protection against solid objects larger than 12mm, making it suitable for use in a variety of environments.
•Aging Invalidation Indicator:
Equipped with a clear aging indication:
•Green for normal operation
•Red for invalidation, helping you monitor device health.
•Remote Signal Function:
The SPD supports remote signal functionality, providing real-time alerts about the status of the device.
•Customizable Voltage Options:
Custom maximum continuous operating voltage is available to meet specific application needs.
Additional Features:
•Thermal Disconnect Mechanism: Automatically isolates the SPD during prolonged surges or overheating for added safety.
•Compact and Modular Design: Easy integration into electrical panels with DIN rail compatibility.
•Fire-Resistant Enclosure: IP20-rated housing minimizes risks in case of electrical faults.
•Durable and Eco-Friendly Construction: Built with recyclable, RoHS-compliant materials for sustainable usage.
•Wide Operating Range: Performs reliably in extreme environmental conditions, from -40°C to +80°C.
•Self-Diagnostic Functionality: Real-time monitoring and diagnostics for efficient maintenance.
•High Energy Absorption: Handles repeated surges without compromising performance.
Applications:
1.Industrial Electrical Systems:
The THACS-II80 is ideal for protecting high-voltage industrial equipment and machinery, preventing damage from power surges and electrical faults.
2.Commercial Buildings:
Safeguard critical systems like HVAC, lighting, servers, and data centers from electrical surges, ensuring continuous operation.
3.Telecommunications Infrastructure:
Protect telecom networks and equipment from lightning strikes and voltage surges, ensuring the reliability of communication systems.
4.Renewable Energy Systems:
Designed to protect solar, wind, and other renewable energy systems from the effects of electrical surges and transient voltage spikes.
5.Residential Use:
Suitable for home appliances, electronics, and other sensitive devices that need protection from surges caused by storms or electrical grid instability.
Why Choose THACS-II80?
1.Exceptional Surge Capacity: Capable of handling high-energy surges with an 80 kA maximum discharge current, making it suitable for demanding environments.
2.Customizable Options: Configurable Uc values from 275V to 420V for versatile applications.
3.Rapid Response: Lightning-fast activation (< 25 nanoseconds) minimizes damage to connected devices.
4.User-Friendly Monitoring: Green and red status indicators provide clear and immediate diagnostics.
5.Remote Signal Integration: Supports remote monitoring for proactive maintenance and control.
6.Compliance with Standards: Meets IEC61643-11 for consistent and reliable performance.
