MODEL SPECIFICATION
| MODEL AND SPECIFICATION | THACS-II-100 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. continuous operating voltage Uc (V) | 275 | 320 | 385 | 420 | 800 | 1000 | ||||
| No of Poles | 8 Pole | |||||||||
| Max. Discharging Current Imax (kA) (8/20us) | 100 | 120 | 150 | |||||||
| Voltage protection level Up (kV) | 1.8 | 2.5 | 2.5 | 1.8 | 2 | 2.3 | 2 | 2.5 | 3.2 | 3.5 |
| Nominal discharge current (8/20μs) In (kA) | 50 | 60 | 80 | |||||||
| Response time tA (ns) | < 25 | |||||||||
| Protection Grade | IP20 | |||||||||
| Standard | IEC61643-11 | |||||||||
| Indication of invalidation | Aging failure: colorless Normal, red failure | |||||||||
| Application | Line-level protection | |||||||||
| Remote Signal Function | ||||||||||
| Remarks | ||||||||||
Product Tags
- High-capacity surge protection
- Surge protection for industrial equipment
- Surge suppressor for commercial buildings
- IEC61643-11 certified SPD
- Type 1 surge protection device
- Line-level surge protection
- High-discharge surge suppressor
- Electrical surge prevention
- Fast-response surge protection
- High-voltage surge protection device
- Reliable surge protection for telecom
- Surge protector for renewable energy systems

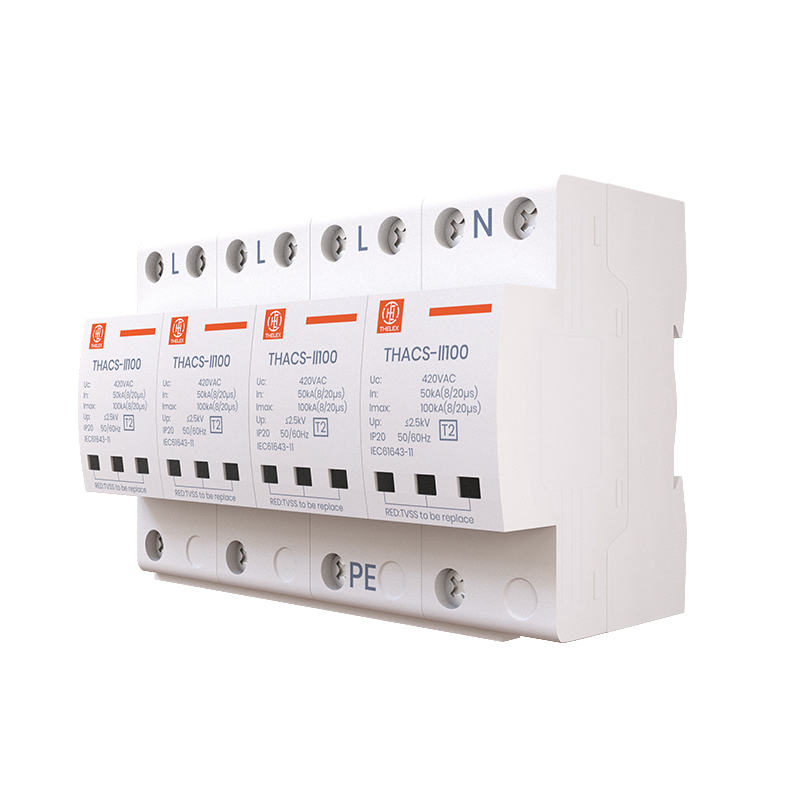

Product Description: THACS-II-100 Surge Protection Device (SPD) (100kA) (New Surge)
The THACS-II-100 Surge Protection Device (SPD) is engineered for heavy-duty surge protection across a wide range of electrical systems. Designed for both industrial and commercial applications, the THACS-II-100 ensures superior protection against high-voltage surges, lightning strikes, and electrical transients. With an exceptional surge current rating and customizable voltage options, this SPD provides optimal protection to sensitive equipment, ensuring its longevity and efficient operation.
Whether for incoming line protection or line-level applications, the THACS-II-100 offers highly reliable surge protection, meeting the rigorous standards of IEC61643-11.
Key Features:
•Max. Continuous Operating Voltage (Uc):
The THACS-II-100 is available in various voltage options, including 275V, 320V, 385V, 420V, 800V, and 1000V, making it suitable for different system voltages and configurations.
•Voltage Protection Level (Up):
With protection levels ranging from 1.8kV to 3.5kV, the device offers robust surge suppression to protect equipment from extreme electrical spikes.
•Max Discharging Current (Imax):
The THACS-II-100 can handle a maximum surge current of 100kA to 150kA (8/20μs), ensuring reliable protection during high-voltage surges.
•Nominal Discharge Current (In):
The SPD can manage 50kA to 80kA (8/20μs) surge currents, making it highly effective for various electrical systems requiring substantial protection.
•Fast Response Time (tA):
With an ultra-fast response time of <25 ns, the THACS-II-100 instantly suppresses voltage surges, minimizing damage to electrical equipment.
•Protection Grade (IP20):
Rated IP20, the SPD offers protection against solid objects larger than 12mm, making it suitable for both industrial and residential environments.
•Indication of Invalidation:
The SPD is equipped with a clear color indication system:
•Colorless for normal operation
•Red for failure, allowing for easy monitoring and quick detection of issues.
•Remote Signal Function:
Provides remote signaling for real-time monitoring and alerting, ensuring continuous protection and device status updates.
Additional Features:
•Thermal Disconnect Mechanism: Automatically isolates the device in case of overheating or prolonged surge exposure, preventing further damage.
•Modular and Compact Design: Easily integrates into electrical panels, with compatibility for DIN rail mounting to save space.
•Fire-Resistant Enclosure: The IP20-rated, fire-resistant casing reduces the risk of fire during surge events.
•Eco-Friendly Materials: Constructed from RoHS-compliant and recyclable materials, making it an environmentally responsible choice.
•Wide Temperature Range: Operates efficiently in extreme temperatures from -40°C to +80°C, providing reliable performance in challenging environments.
•Self-Diagnostic Functionality: Continuous self-checks to ensure the device is functioning optimally, with alerts for any faults or malfunctions.
Applications:
1.Industrial Electrical Systems:
Protect heavy machinery, control panels, and automated equipment from damaging voltage surges, reducing maintenance costs and preventing system failures.
2.Commercial Infrastructure:
Safeguard sensitive equipment in data centers, telecommunications networks, and retail establishments from power transients, ensuring business continuity.
3.Power Distribution Systems:
Used for line-level protection, the THACS-II-100 ensures safe operation of high-voltage distribution lines by preventing damage from surges.
4.Renewable Energy Systems:
Effectively protects solar, wind, and other renewable energy systems from power spikes, improving system efficiency and preventing downtime.
5.Residential Use:
Protect household appliances, electronics, and other sensitive devices from electrical surges that could cause irreparable damage.
Why Choose THACS-II-100?
1.High Surge Capacity: With options for 100 kA, 120 kA, or 150 kA, this SPD handles large energy surges, making it perfect for demanding environments.
2.Customizable Voltage Options: Tailored for a variety of voltage configurations (275V to 1000V) to suit different applications.
3.Fast Response Time: Instantly reacts to surges with a response time of < 25 nanoseconds, minimizing potential damage to equipment.
4.Clear Indicator for Failure: The colorless (normal) and red (failure) indicator lights provide clear, easy-to-read diagnostics for immediate maintenance actions.
5.Remote Monitoring Capability: Supports integration with remote signal functions for efficient monitoring and proactive maintenance.
6.IEC61643-11 Compliant: Meets industry standards for surge protection, ensuring reliable and safe operation.
