MODEL SPECIFICATION
| MODEL AND SPECIFICATION | THACS-II10 | THACS-II20 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. continuous operating voltage Uc (V) | 275 | 320 | 385 | 420 | 750 | 275 | 320 | 385 | 420 | 750 |
| No of Poles | 4 Pole | |||||||||
| Max. Discharging Current Imax (kA) (8/20us) | 10 | 20 | ||||||||
| Voltage protection level Up (kV) | 1.0 | 1.2 | 1.0 | 1.5 | 2.0 | 1.2 | 1.4 | 1.2 | 1.8 | 2.5 |
| Nominal discharge current (8/20μs) In (kA) | 5 | 10 | ||||||||
| Response time tA (ns) | < 25 | |||||||||
| Protection Grade | IP20 | |||||||||
| Standard | IEC61643-11 | |||||||||
| Indication of invalidation | Green: Normal, red: Invalidation | |||||||||
| Application | Several protection for in line | |||||||||
| Remote Signal Function | Can also picking | |||||||||
| Remarks | Other maxi continuous operating voltage can be customized | |||||||||
Product Tags
- THACS-II10 and THACS-II20 Surge Protection Devices
- IEC61643-11 Compliant Voltage Protection Solutions
- 10kA and 20kA Discharge Current Surge Protectors
- In-Line Electrical Surge Protection Devices
- Industrial and Commercial Surge Protection SPDs
- Compact Surge Protection Devices for Homes and Businesses
- Lightning and Overvoltage Protection for Renewable Energy
- Quick-Response Electrical Surge Protection Devices
- IP20-Rated Surge Protectors for Sensitive Equipment
- Customizable Voltage Surge Protection Solutions
- Reliable Power Line Protection for Telecom Systems
- High-Performance Electrical Surge Mitigation Devices
- Advanced Residential Surge Protection Systems
- Efficient Surge Protectors for Solar and Wind Systems
- Remote Monitoring Enabled Surge Protection Devices

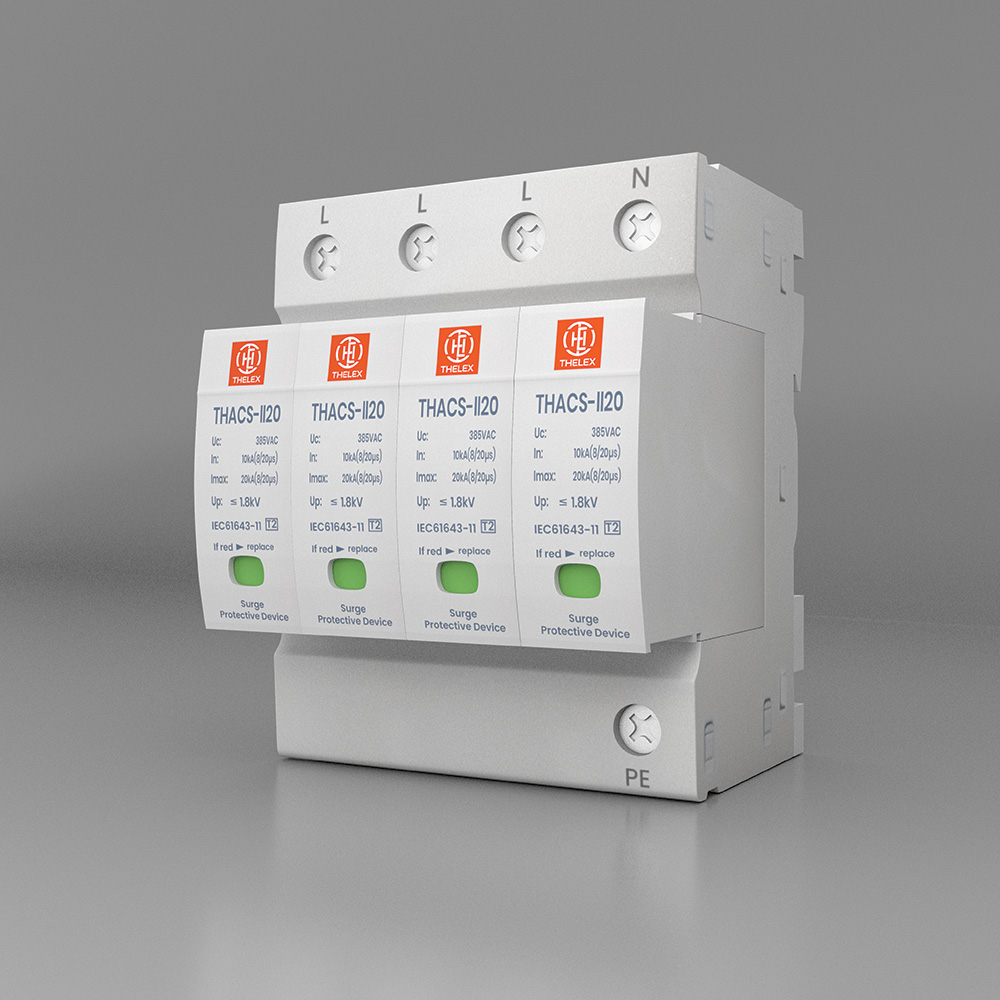

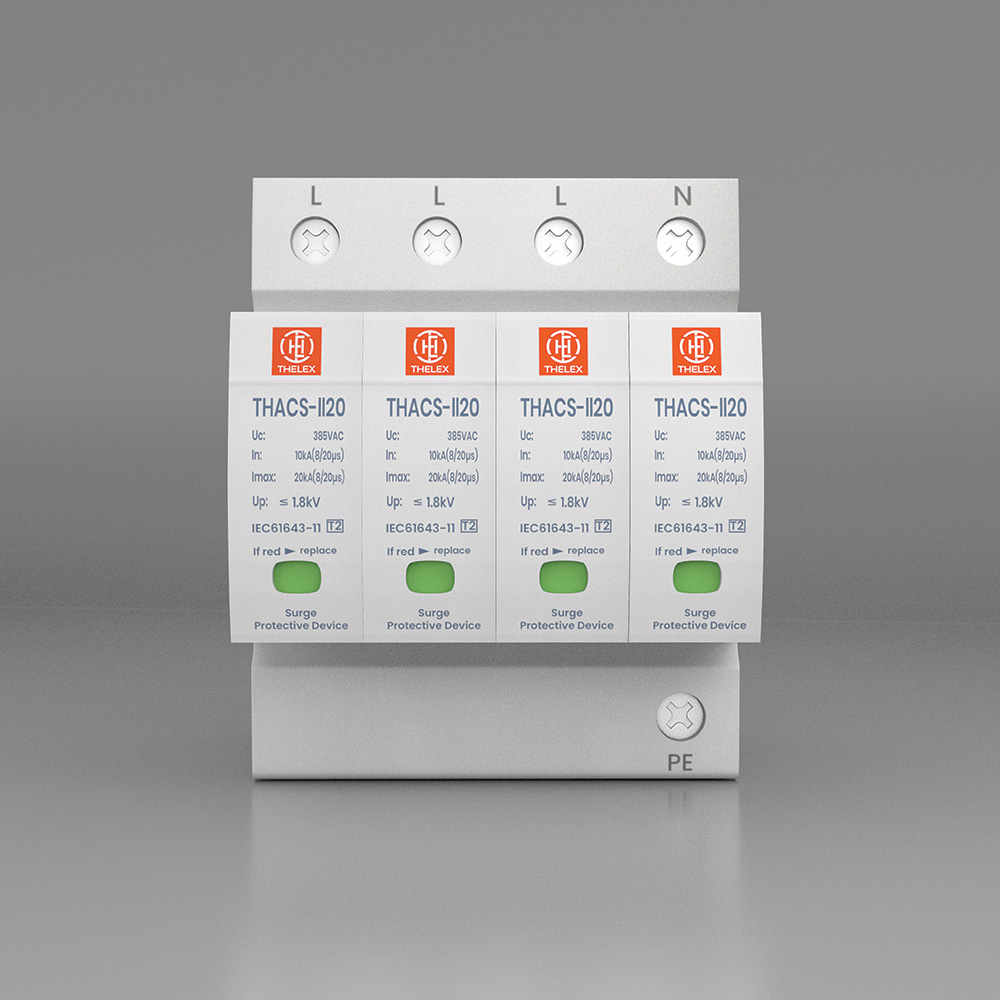

Product Description (20kA) (New Surge)
The THACS-II10 and THACS-II20 are advanced surge protection devices (SPDs) designed for in-line protection across a variety of electrical and electronic systems. With their compact design and compliance with IEC61643-11 standards, they offer high-performance surge mitigation for industrial, commercial, and residential applications. Featuring a maximum discharge current of 10kA and 20kA, these devices ensure reliable operation under high-stress conditions.
Key Specifications:
• Max. Continuous Operating Voltage (Uc):
•THACS-II10: 275V, 320V, 385V, 420V, 750V
•THACS-II20: 275V, 320V, 385V, 420V, 750V
• Voltage Protection Level (Up):
•THACS-II10: 1.0kV, 1.2kV, 1.0kV, 1.5kV, 2.0kV
•THACS-II20: 1.2kV, 1.4kV, 1.2kV, 1.8kV, 2.5kV
• Max. Discharge Current (Imax):
•THACS-II10: 10kA
•THACS-II20: 20kA
• Nominal Discharge Current (In):
•THACS-II10: 5kA
•THACS-II20: 10kA
• Response Time (tA): < 25 ns
• Protection Grade: IP20
• Indication of Invalidation:
•Green: Normal
Red: Invalidation
Additional Features:
•Remote signal function for real-time monitoring.
•Customizable continuous operating voltage options to suit specific requirements.
Applications:
1. Industrial Equipment Protection:
Ensures safe operation of critical machinery by mitigating transient overvoltage risks.
2. Telecommunication Systems:
Protects sensitive telecom equipment from power surges.
3. Residential and Commercial Buildings:
Offers surge protection for household and office appliances.
4. Power Distribution Panels:
Provides reliable protection for main and sub-distribution panels.
5. Renewable Energy Systems:
Safeguards solar and wind power installations from surge damages.
6. IT and Data Centers:
Ensures uninterrupted operation of servers and networking devices.
Why Choose THACS-II Series?
1. High Durability: Engineered for longevity and reliable performance in demanding environments.
2. Quick Response Time: Fast-acting protection ensures minimal system downtime.
3. Standards-Compliant: Certified to IEC61643-11, ensuring global reliability standards are met.
4. Customizable Voltage Range: Other maximum continuous operating voltages (Uc) can be customized to suit specific application needs.
